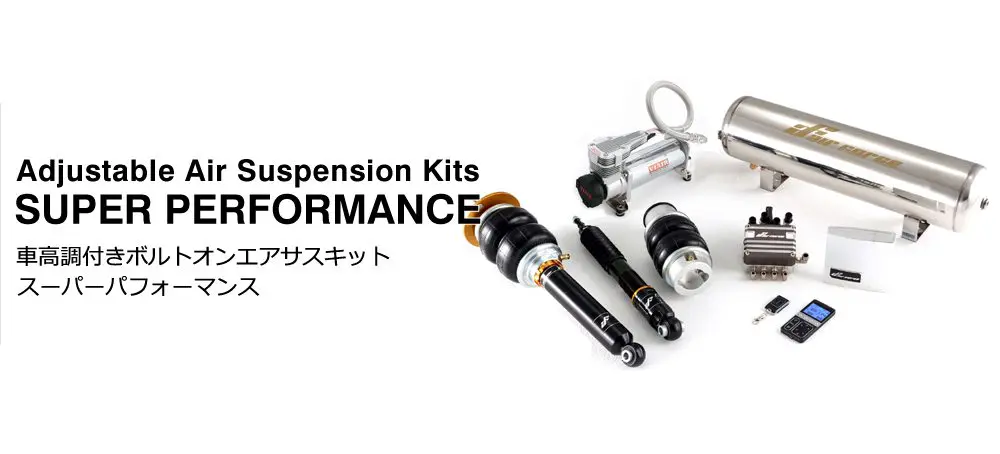

Air Force Japan Air Suspension kit Super Performance for GR Yaris
Â¥764,400
Made in Japan high-quality genuine Air-Force Japan Air Suspension.
You can also purchase other Air-Force Japan parts from Easy Cars Japan
Description
Vehicle height-adjustable Bolt-on air suspension kit
All you have to do is to replace the air-force dampers that match your car model, so you can complete your suspension as if you were replacing dampers.
Ride comfort and stroke can be adjusted with full-tap dampers and damping force adjustment.
More than 450 types of compatible car models are available.
Pressure sensor system
Air Force offers two types of kits: the Pressure Sensor System (Super Performance) and the Height Sensor System (GOLD).

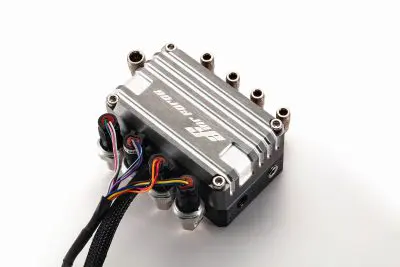

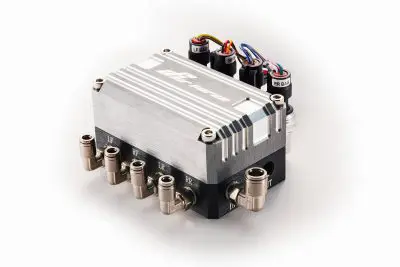

The main feature of the pressure sensor system is this box. It contains 8 solenoid valves and a digital pressure sensor that detects the air pressure of all 4 wheels.

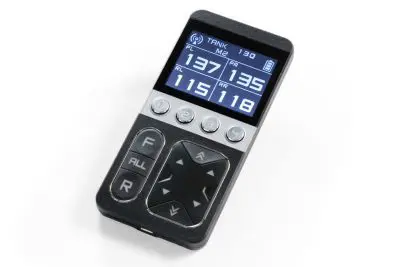

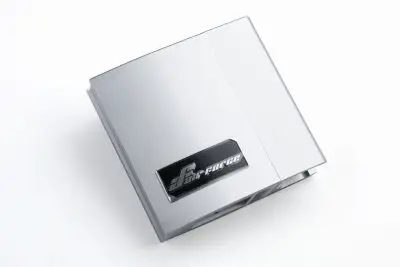

The ECU (control system) digitizes the air pressure measured by the pressure sensor. The air pressure is displayed on the wireless remote control.
In addition, with the memory function that stores four ride heights, you can set the ride height to your preference at the touch of a button. It also has a function that allows you to set the vehicle height to the running height the moment you start the engine. I think you will find that the air suspension has become really convenient.
Size overview
Stainless steel tank (5 gallons) 5 ports Withstand voltage … 200PSI Number of ports … 1 / 4PT x 4, 1 / 8PT x 1

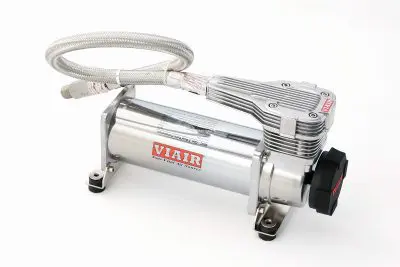

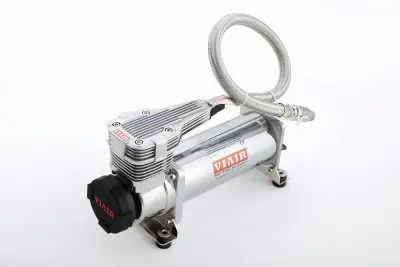

The compressor has been renewed from VIAIR ViAir 480C to 485C.
The standard compressor is a VIAIR chrome compressor.
If you prefer black (VIAIR), please let us know at the time of purchase.

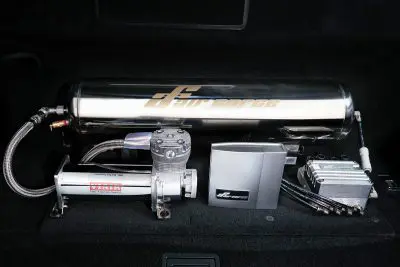

Installation image

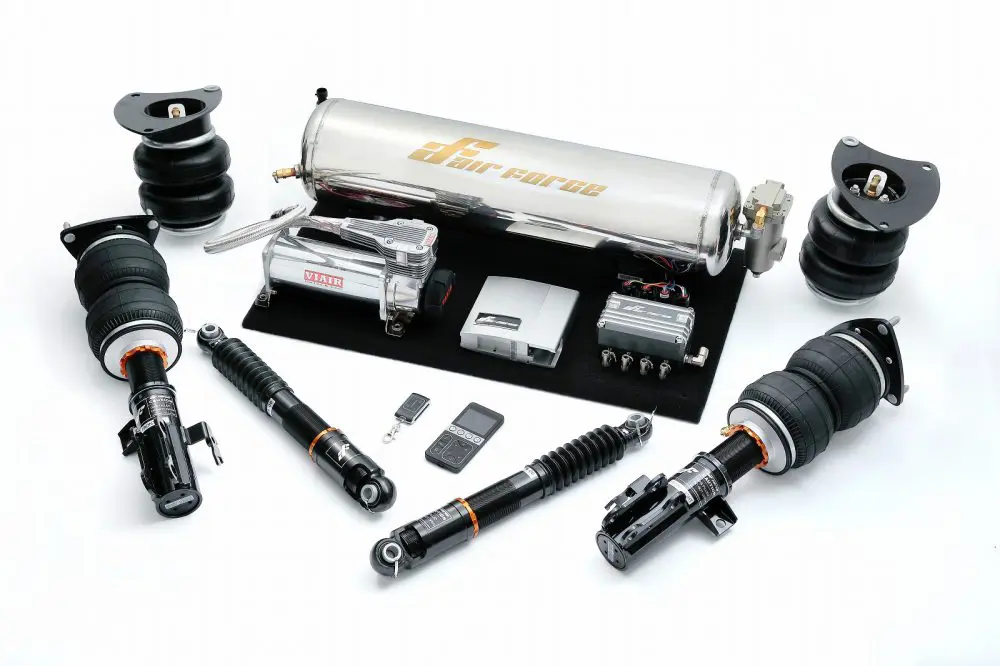

Contents

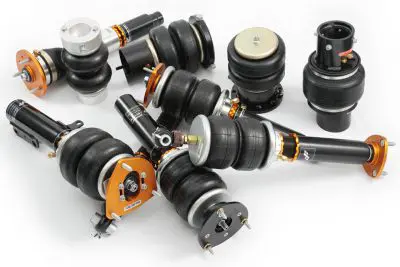

- Harmonic drive integrated airbag or airbag, harmonic drive (for each compatible model)
- Compressor (1 unit)
- Stainless steel tank (5 gallons)
- Installation plate
- Valve with digital pressure sensor (4 wheels independent)
- ECU
- LED monitor remote control
- Remote control small
- Moisture filter
- Pressure sensor for tank
- Receiving antenna
- USB charging cable
- Cigar USB conversion plug
- Hose, wiring set
- ECU bracket
- Velcro for fixing the remote control
- operating instructions
