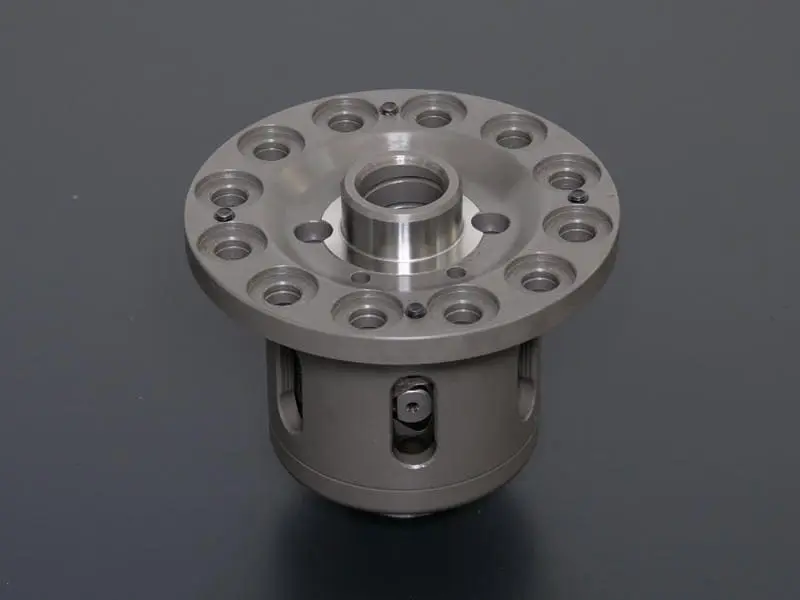

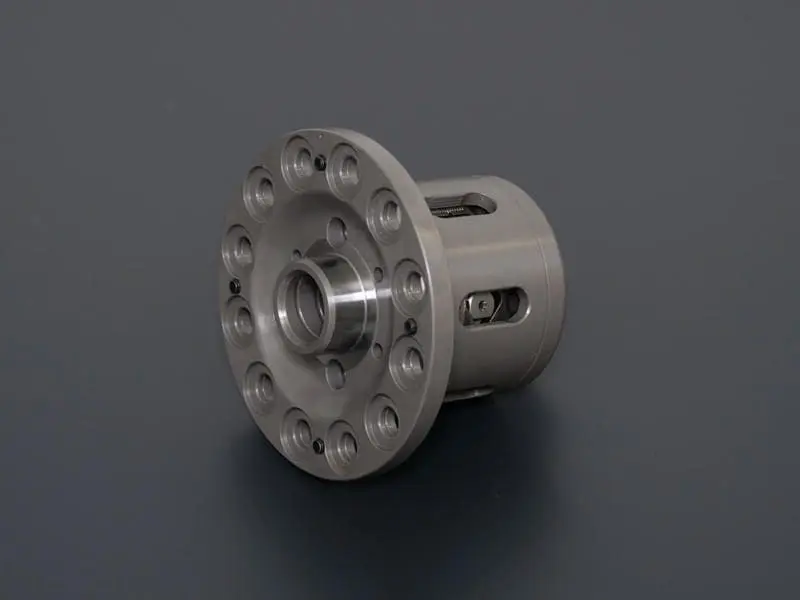

CUSCO LSD type-RS Rear for GR Yaris
JPY, ¥158,840
The price for Front type-RS can be found here.
Made in Japan high-quality genuine CUSCO
You can also purchase other CUSCO parts from Easy Cars Japan
Please select per-product shipping when placing the order. This can be shipped via economy air shipping to most parts of Asia, the US, and Europe. However, the territories cannot be covered
with this shipping, we may request an additional shipping charge after the buyer place the order.
4.5% deduction when paying via Bank/WISE Payment
Description
CUSCO LSD has been newly set to further enjoy the powerful and nimble driving of the 4WD 1.6L turbo engine! (Front & Rear)
High-dimensional driving can be achieved by fully demonstrating high traction performance.
Smooth low initial torque and high response type RS with original RS spring.
A popular type of MZ that is deeply rooted in the conventional mechanism that uses a cone spring.
You can fully demonstrate the original performance from city riding to sports driving.
In addition, a new pressure ring for the setting has been added!
The lineup includes the B size 1way 55 ° -1.5way 55 ° / 20 ° specification that corresponds to the GR Yaris front LSD and the D size 1.5way 55 ° / 20 ° -2way 55 ° / 55 ° specification that corresponds to the rear LSD.
All Cusco parts are designed with the total balance of “running” in mind.
Please look forward to high-quality genuine tuning parts from MADE IN JAPAN.
| Development vehicle | ||||||
| Manufacturer / car name | grade | Model | Model year | Drive system | Specifications such as engine | remarks |
| Toyota GR Yaris | RC | 4BA-GXPA16 | 2020.10 | 4WD | G16E-GTS / 1618cc * Turbo |
6MT |
* Toyota GR Yaris RS grade model 5BA-MXPA12 (FF) is unconfirmed
| Car name | Toyota GR Yaris |
| Compatible model | GXPA16 |
| Drive system | 4WD |
| engine | 1.6L (turbo) |
| Mission | 6MT |
-A must-have item for enjoying sports driving!
-Both ease of riding and solid effectiveness during sports driving!
・ Type-RS is an almighty LSD that is also recommended for people who mainly ride in town!
-Very high durability and reliability are created by Cusco’s unique mechanism and manufacturing method. Speaking of mechanical LSD, CUSCO LSD!
-For CUSCO LSD type-RS, you can select the operating method and cam angles such as 1Way and 1.5Way.
-Supports a wide range of settings. Please contact us for more information.
| Front type-RS [Genuine: Open / Torsen] |
|||||||
| Product Specifications | B size, 6 clutch discs on each side RS spring standard 6 |
||||||
| Product code | Initial setting cam angle (ON / OFF) |
Changeable cam angle (ON / OFF) |
Initial torque | JAN CODE | |||
| Standard specifications | LSD-1C7-F | 1way | 35 ° | 1way | 45 ° | 3-5kgf ・ m | 4996338108777 |
| LSD-1C7-V15 | 1.5way | 35 ° / 20 ° | 1.5way | 45 ° / 20 ° | 3-5kgf ・ m | 4996338108784 | |
| Spec-F | LSD-1C7-FT | 1way | 35 ° | 1way | 45 ° | 2-4kgf ・ m | 4996338108814 |
| LSD-1C7-VT15 | 1.5way | 35 ° / 20 ° | 1.5way | 45 ° / 20 ° | 2-4kgf ・ m | 4996338108821 | |
| remarks | Initial torque measurement SST LSD-SST-09 [Price 14,900 yen] Repair kit (standard specification) LSD-001-31 [Price 22,600 yen ] Repair kit (Spec- F) LSD-001-31T [Price 22,600 yen] |
||||||
| Rear type-RS [Genuine: Open / Torsen] |
|||||||
| Product Specifications | D size, 6 clutch discs on each side RS spring standard 12 |
||||||
| Product code | Initial setting cam angle (ON / OFF) |
Changeable cam angle (ON / OFF) |
Initial torque | JAN CODE | |||
| Standard specifications * |
LSD-1C8-C | 1way | 45 ° | 1.5way | 55 ° / 20 ° | 2-4kgf ・ m | 4996338108852 |
| LSD-1C8-C15 | 1.5way | 55 ° / 20 ° | 1way | 45 ° | 2-4kgf ・ m | 4996338108869 | |
| LSD-1C8-L15 | 1.5way | 55 ° / 20 ° | 2way | 55 ° / 55 ° | 2-4kgf ・ m | 4996338108890 | |
| LSD-1C8-L2 | 2way | 55 ° / 55 ° | 1.5way | 55 ° / 20 ° | 2-4kgf ・ m | 4996338108906 | |
| remarks | * Spec-F specification not set (impossible) SST LSD-SST-02 for initial torque measurement [price ¥ 14,900 ]Repair kit (standard specification) LSD-001-25 [price ¥ 20,400] |
||||||
Price for Rear type-RS
