Description

CUSCO SPORT S

Compatible vehicles and models: GR Yaris, GXPA16, early model

● A sports model that does not compromise comfort from city driving to circuit driving

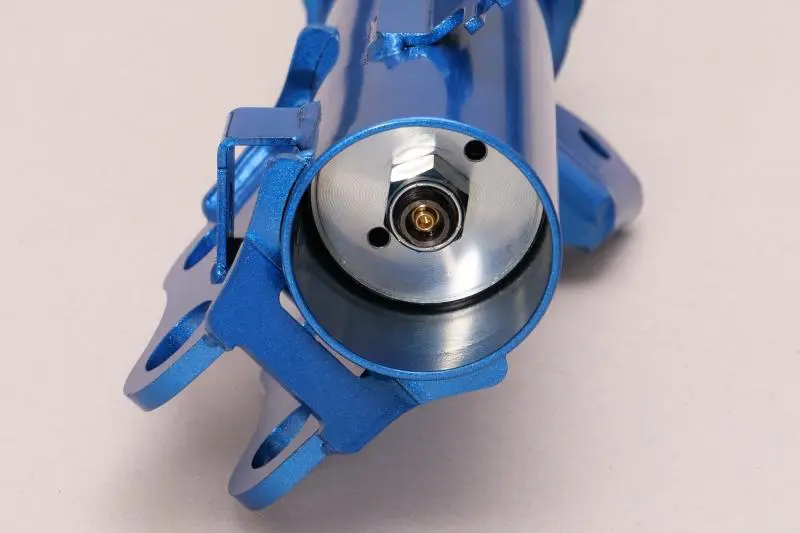

● Adopts a high-rigidity monotube shock that is suitable for full-scale sports driving
● Full-length adjustable ride height adjustment (front, full tap type)
● 24-stage front and rear damping force adjustment that can be freely set
● Overhaul compatible (charged)
● Reliable domestic production, ISO9001 certified factory production, ASEA standard certified product

Product code: 1C7-64S-CN
JAN code: 4996338111944

[Height adjustment]
Front: Full-length adjustment

Rear: Screw spacer adjustment
[Front and rear 24-stage damping force adjustment]

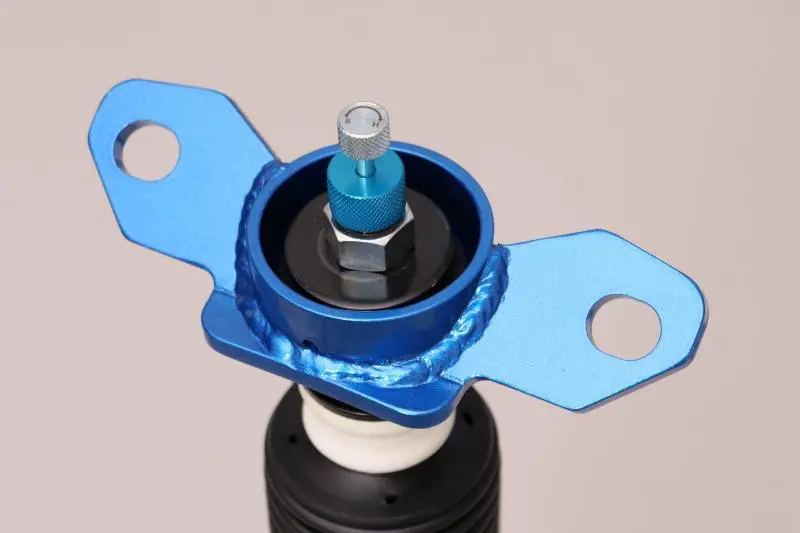

Rear damping force adjustment adapter standard equipment

[Upper mount]

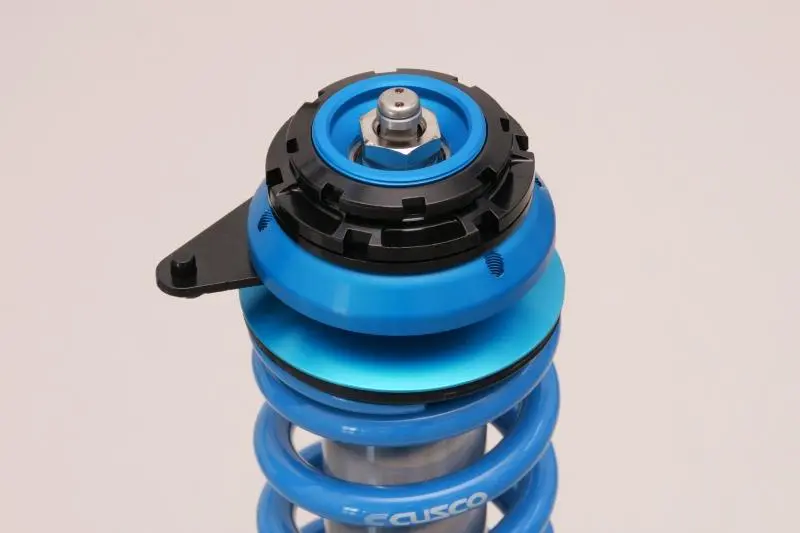

Front: Center lock pillow ball upper mount
Rear: Reinforced rubber upper mount

[Front camber adjustable]

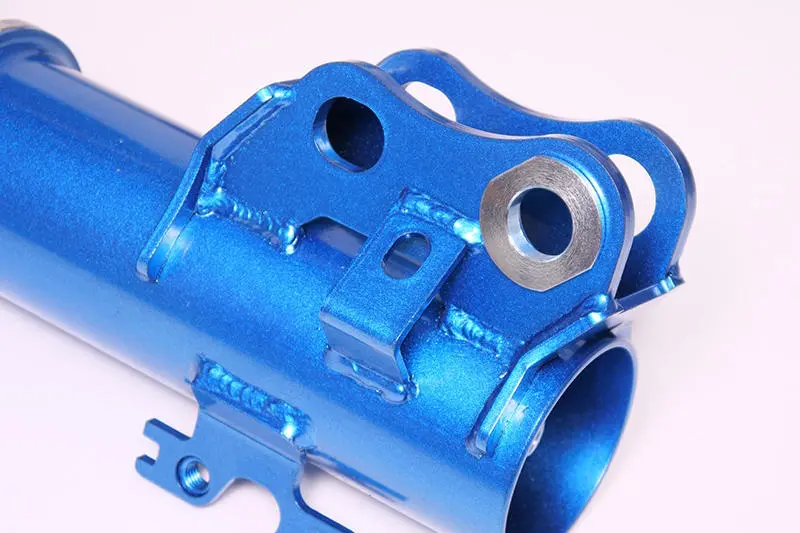

Lower bracket eccentric collar adjustment
Camber angle adjustment range -2° to -4° (reference value)

[Standard spring]
Front: 6 kgf/mm (065-230-06E)
Rear: 7 kgf/mm (065-230-07E)

[Optional rate spring]
Front: 5, 7, 8, 9, 10 kgf/mm
Rear: 6, 8, 9, 10, 11 kgf/mm

[Recommended vehicle height adjustment range*]
Front: -60 to -20mm
Rear: -60 to -20mm

[Reference vehicle height]
Front: -35mm
Rear: -30mm

[Maximum vehicle height adjustment range]
Front: -75 to 0mm
Rear: -75 to -20mm
