Description

The original performance of the suspension. Improved rigidity, by attaching to the bottom of the body to achieve sharp handling, pull out
Material: aluminum steel

Mounting location
● Radiator support part
● Mounting location (rear bumper part)
● Two left and right (rear trailing arm part)
● Rear bumper part

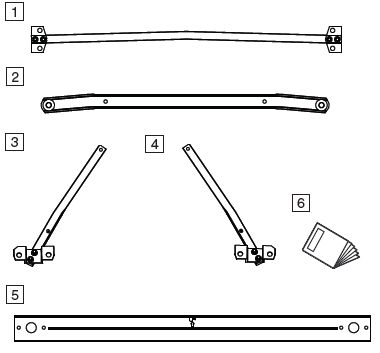

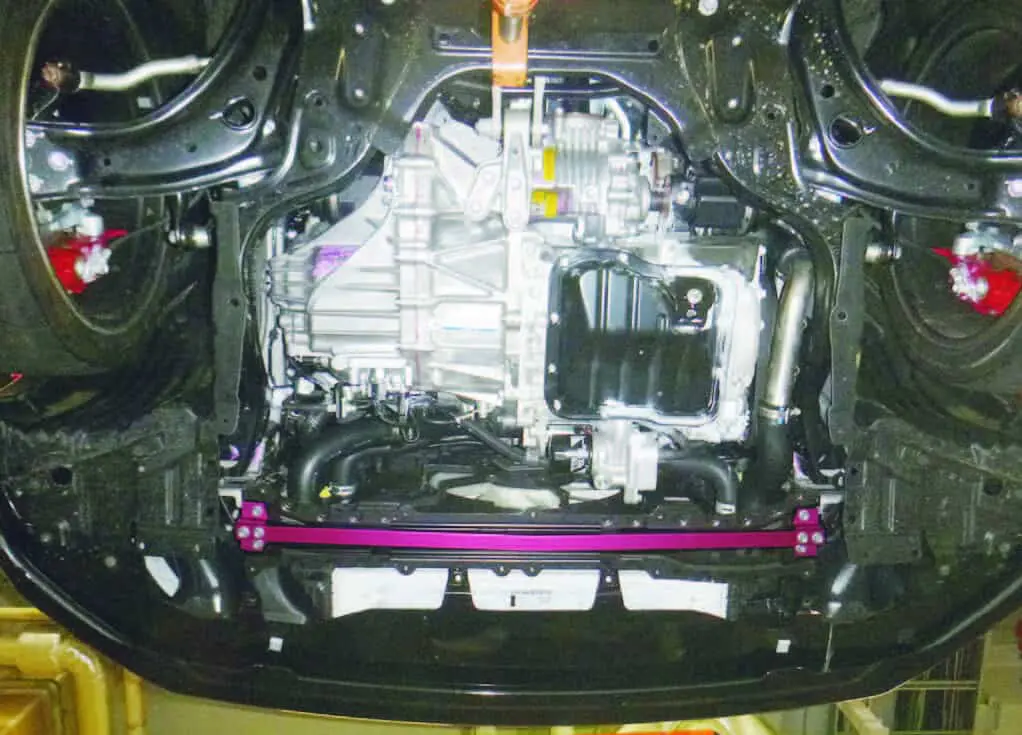

1. Radiator support under brace – 532A0-52010

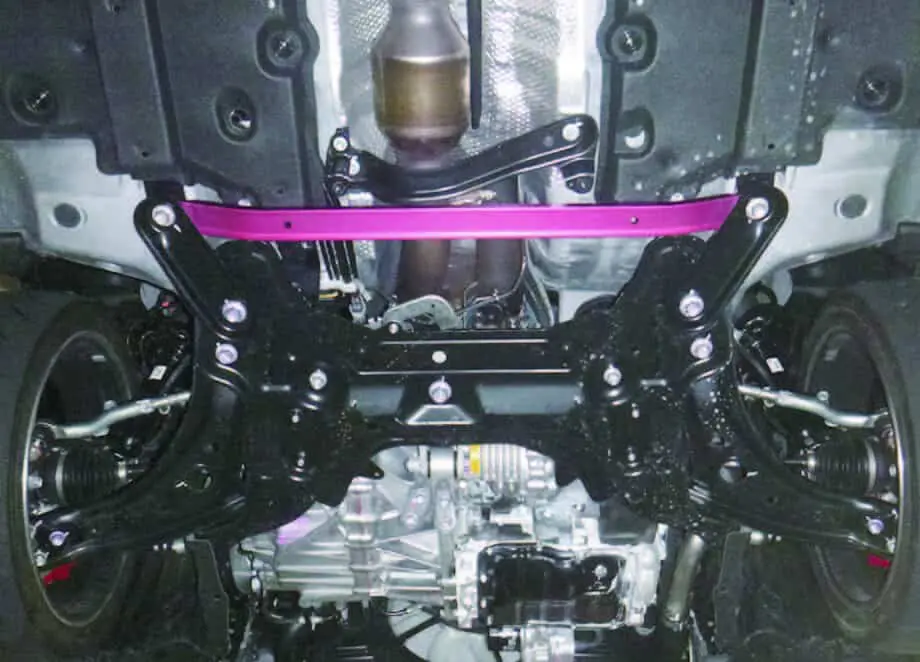

2. The front floor under brace – 581A0-52010
3. Center floor under brace – 582B0-52010
4. Center floor under brace – 582A0-52010
5. Rear bumper brace – 521B1-52010

This kit also includes the other parts that are required to install the GR under the brace set.

1. 4Qty Bolt (M8 × 25mm) Radiator support for under brace – 91671-K0825
2. 2Qty Suspension member lean hosement for the front floor under the brace – 51237-52030
3. 2Qty Bolt (M8 × 35mm)  For center floor under brace For RH / LH – 91671-K0835
4. 4Qty Bolt (M12 × 43mm) Center floor For under brace For RH / LH – 91674-K1235
5. 4Qty Bolt (M8 × 20mm) for rear bumper brace – 91671-K0820
6. 4Qty Nut (M8)  for rear bumper brace – 90178-08024

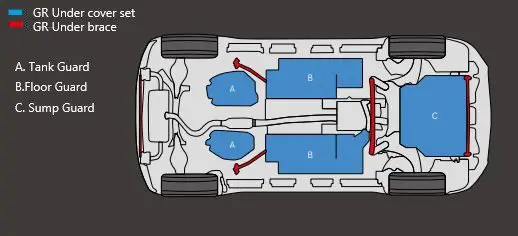

Illustrate the location where the GR Under Guard set can be installed.

Here is the instruction manual in Japanese.
