LEMS COILOVER SUSPENSION KIT KYB SPRINGS for GR Yaris

LEMS Parts for GR Yaris

Home  /  LEMS  /  Toyota  /  LEMS COILOVER SUSPENSION KIT KYB SPRINGS for GR Yaris
Back to shop
Sale!

LEMS COILOVER SUSPENSION KIT KYB SPRINGS for GR Yaris

USD,$3,543.76 $3,456.26

Product Code: L196-KYB

Please select per-product shipping when placing the order. This can be shipped via economy sea shipping to most parts of Asia, the US, and Europe. However, the territories cannot be covered with this shipping, we may request an additional shipping charge after the buyer place the order.


Extra Product Options Price
$0
Product Price
USD,$3,543.76 $3,456.26
Total Price
USD,$3,543.76 $3,456.26
Categories: LEMS, Toyota Tags: GR Yaris, GR Yaris Parts, LEMS for GR Yaris, Shock Absorber, SUSPENSION
  • Description
  • Reviews (0)

Description

[LEMS GR Yaris harmonic drive kit]

[feature]
◆ While emphasizing ride quality on the street, we have finished the specifications so that you can aim for time even on the circuit.
◆ Developed targeting high-grip tires such as A052 / 71RS from normal PS4S
◆ Swift springs are used for the suspension!
(KYB specifications come with KYB suspension)
◆ Helper springs are set for both front and rear!

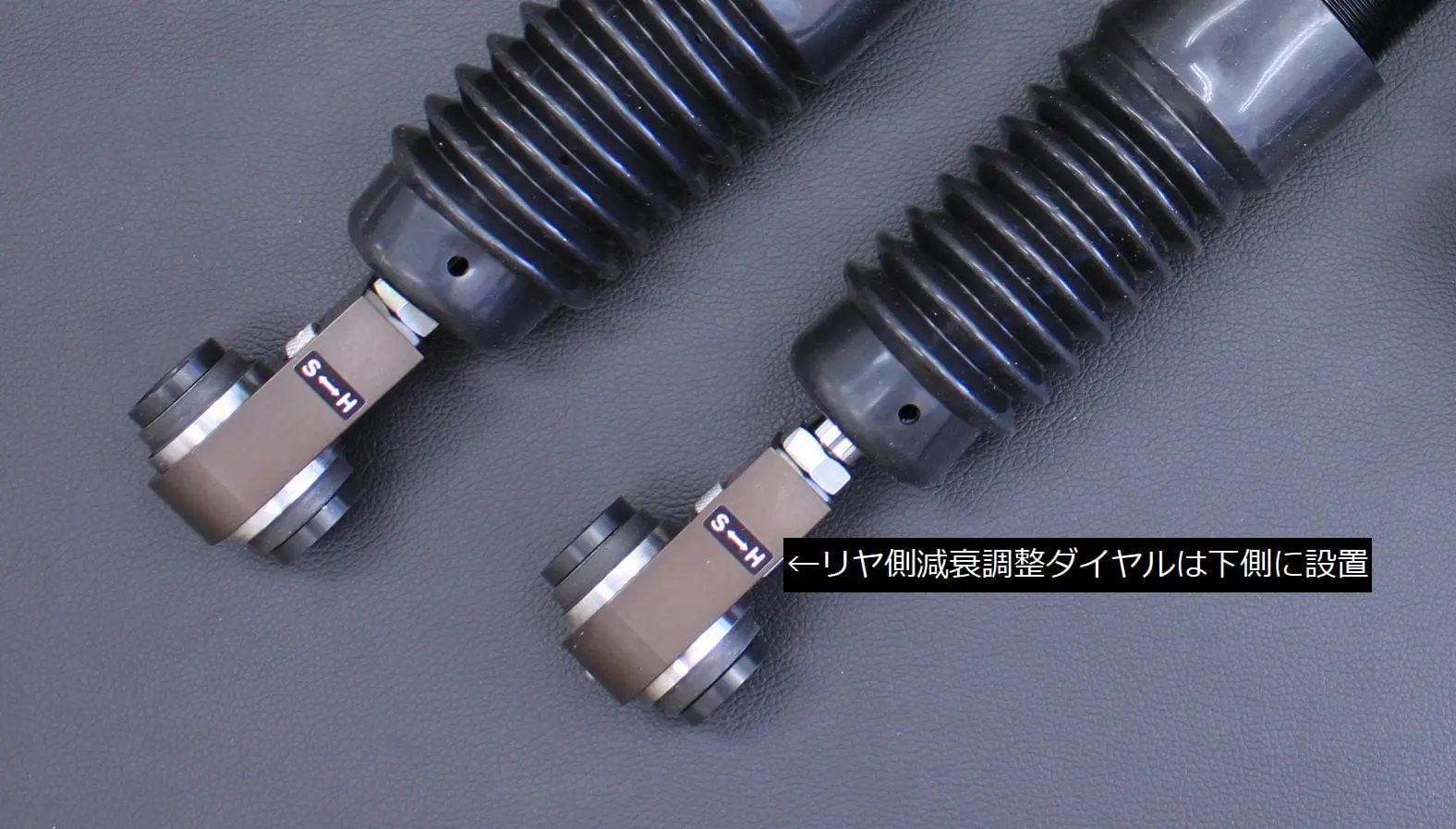

◆ Front and rear damping adjustment 20 steps (rear side can be adjusted on the lower side)

[L196-Swift specification or KYB specification spring rate]
Front: 11kg (6 inches free length 152mm) spring + helper spring
Rear: 11 kg (8-inch free length 203 mm) spring + helper spring

Recommended vehicle height: 0mm ~ -32mm low down recommended
(DEMO CAR front/rear 32mm down)
(Check up to 5 cm down. In that case, install the rear side without a helper and adjust the shock shorter than recommended.)

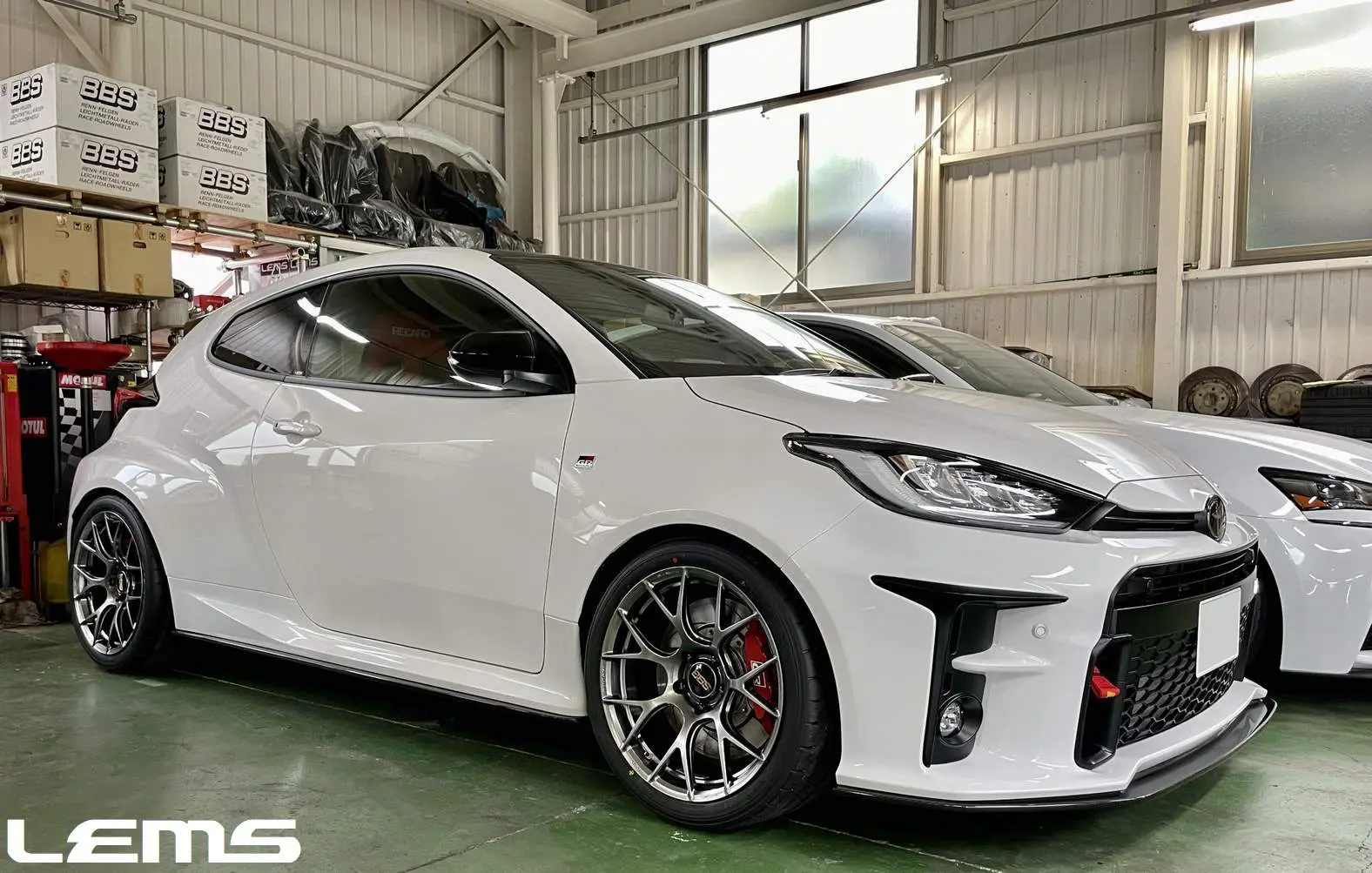

DEMO CAR 32mm down alignment data/camber value

[Front camber toe]
・ Fixed when raised: Left -3 ° 31’Right -3 ° 50′
・ Fixed while lying down: Left -4 ° 13’Right -4 ° 35′
・ Front toe -2.00

[Rear camber toe]
・ Left-2 ° 32’Right-3 ° 02′
・ Riyato -0.20

* 1. Some genuine parts are used for the front upper mount.
* 2. For LEMS store installation work, genuine parts fee + installation wages are required separately.
The genuine parts fee is 4,840 yen (excluding tax). Surveyed in February 2021
* 3. When driving on general roads, a minimum ground clearance of 9 cm or more (a minimum ground clearance of 9 cm is required with the tire pile / slip sign of approximately 1.6 mm left).
* 4. Depending on the wheel size outside the company, it may interfere with the harmonic drive case.

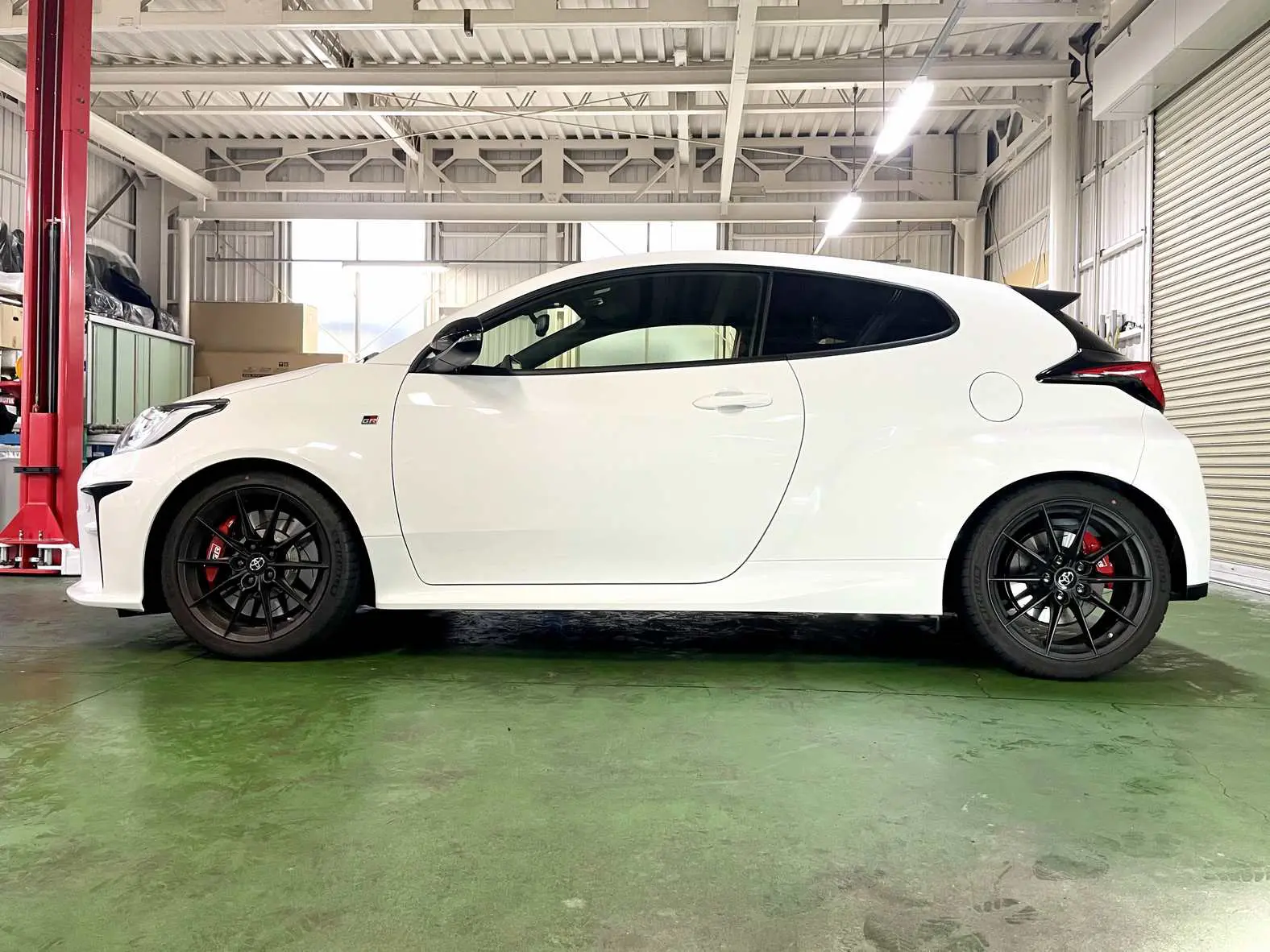

[Normal reference data]
Front: From the bottom of the genuine wheel rim to the top of the fender arch Front: 622mm → 32mm down 590mm
(679mm from the road surface to the fender)

Rear: From the bottom of the genuine wheel rim to the top of the fender arch Rear: 615mm → 32mm down 583mm
(677mm from the road surface to the fender)

* Vehicle height data is a guide, please measure before and after installation in an actual vehicle.
* Notes on damping adjustment
Do not return the attenuation setting more than 20 steps.
Please set the same position on the left and right. It was

* Product warranty: 1 year or 20,000 km from the date of purchase
* Product colors and spring colors are subject to change without notice.
Please note that.

Delivery time: 14-40 days

[Compatible model]
・ GXPA16 (RZ / RZ high performance)
・ GXPA16 (RC)

Front set contents
11kg (6 inches free length 152mm) swift spring + helper spring

Rear set contents
Rear: 11kg (8 inches free length 203mm) swift spring + helper spring
