Description

Torque: 820Nm(84 Kgfm)
Pedal force: 17.5kgf ( Yaris Original 15.4 Kgf)
Weight: 14.8kg (Yaris Original 19.3 Kg)

[Product description]

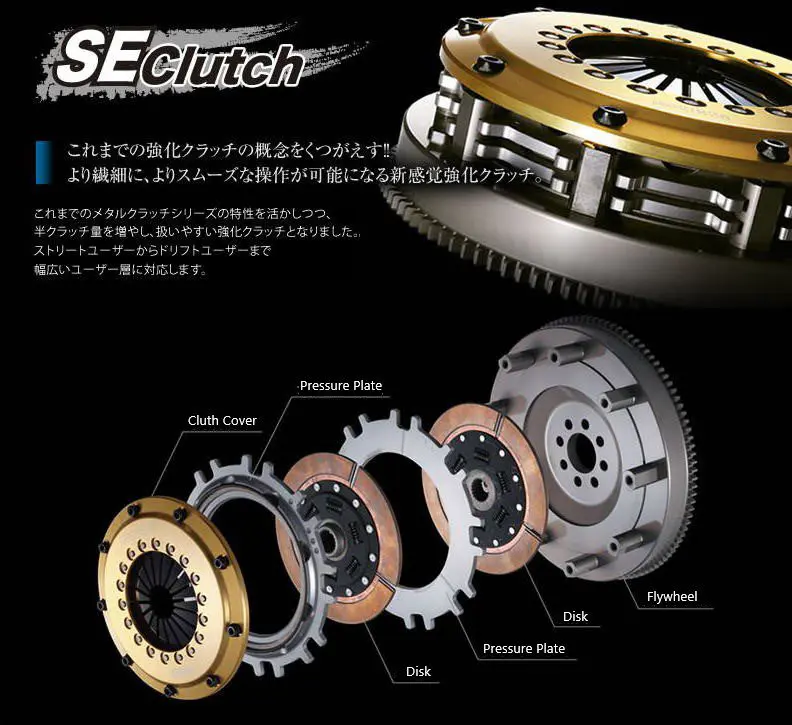

type: ORC Metal Series SE CLUTCH ( Metal twin, with a damper)
・ Corresponding torque: 820Nm (84kgfm)
・ Pedal pedaling force: 17.1kgf (genuine 15.4kgf)
・ Weight: 14.8kg (genuine 19.3kg)
・ Part number: ORC-559DB-TT1818-SE

[Compatible vehicle]
● Model: TOYOTA GR Yaris
● Model: GXPA16
● E / g Model: G16E-GTS

Smart engagement mechanism (SE mechanism) protects the drive system and improves half-clutch performance.
-Adopting a metal disc eliminates heat dripping even in harsh circuit driving.
-Improved sharpness and quietness by strap drive. (Metal single only, no rattling noise is generated)

Since its release, it has been well received by users as “easy to ride”. A high-performance, single-clutch for light-tuned vehicles developed by feeding back the elemental technologies accumulated through race support to ORC’s design know-how. 309 series and 409 series are available depending on the vehicle.
-A mild and outstanding pedal feeling and reliable torque transmission have been achieved, and at a reasonable price.
-A wide lineup supports all situations, such as a silent type that suppresses backlash noise, a damperless type that emphasizes response, and a high μ disc type.
