Description

■ Specifications
Brightness (lumens) : 1,100 Lm
brightness (candela) : 110,000cd
color temperature: 6000K
Rating 12V/24V 22W
(1 lamp, 24V relay sold separately)light distribution driving & spots body size diameter 163 x Height 180 x Depth 90 (mm)weight1,240g (1 lamp)set contentLamp body x 2, stone guard x 2, harness kit (for 2 lamps, waterproof switch, 12V dedicated relay, fuse)UsageCompetition-only product

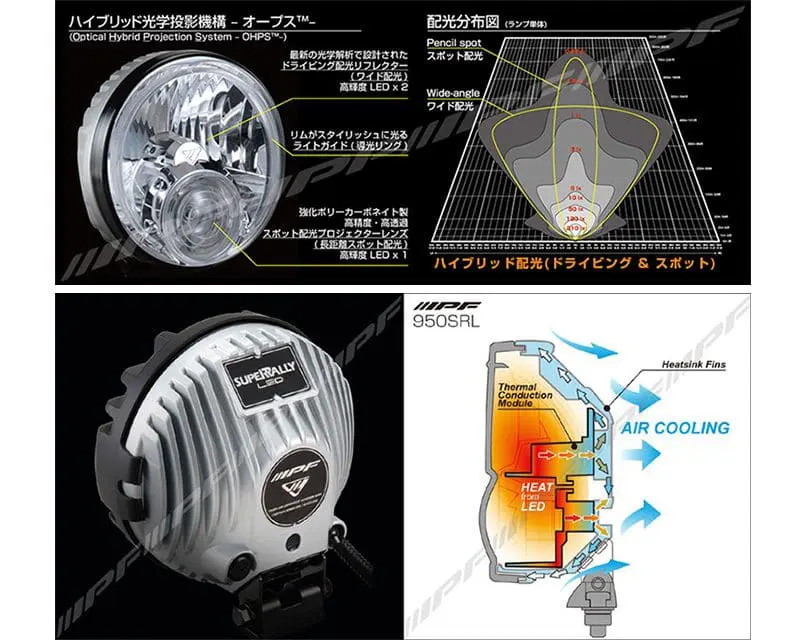

Equipped with original advanced optical technology, hybrid optical projection mechanism -OHPS™-

○ Equipped with original advanced optical technology “Hybrid Optical Projection Mechanism-OPS™”.
Equipped with IPF’s unique advanced optical technology “Hybrid Optical Projection Mechanism OPUS™”. Wide driving light is irradiated by a reflector method, and the long-distance spotlight is irradiated from the projector lens at the same time, optimal light distribution and brightness, and unnecessary dazzling light is suppressed. It ensures optimum visibility even for professional drivers who use it in harsh environments.

○Achieves ultra-high brightness that surpasses large-diameter off-road lamps in spite of its compact size and low power consumption.
With a compact body and low power consumption, it is equipped with 3 of the latest high-power LEDs and has a special optical design to achieve ultra-brightness that surpasses large-diameter off-road lamps.
* Total luminous flux 1,100 Lm / Maximum luminous intensity 110,000 cd / Color temperature 6,000 K / 22W (1 lamp) / Product life 30,000hr

○Equipped with a high-performance LED driver unit that supports both 12V and 24V. CE mark/E mark certified.
Compatible with both 12V / 24V, built-in radio noise reduction circuit, and equipped with a high-quality, high-performance LED driver unit. It clears the strict new standards of the EMC Directive (Electromagnetic Compatibility Standards) and acquires the CE mark certification for compliance with European standards. Minimize the impact of electromagnetic noise on audio and other automotive electronics. In addition, the United Nations Economic Commission for Europe regulations-compliant product indication “E mark” has been certified.

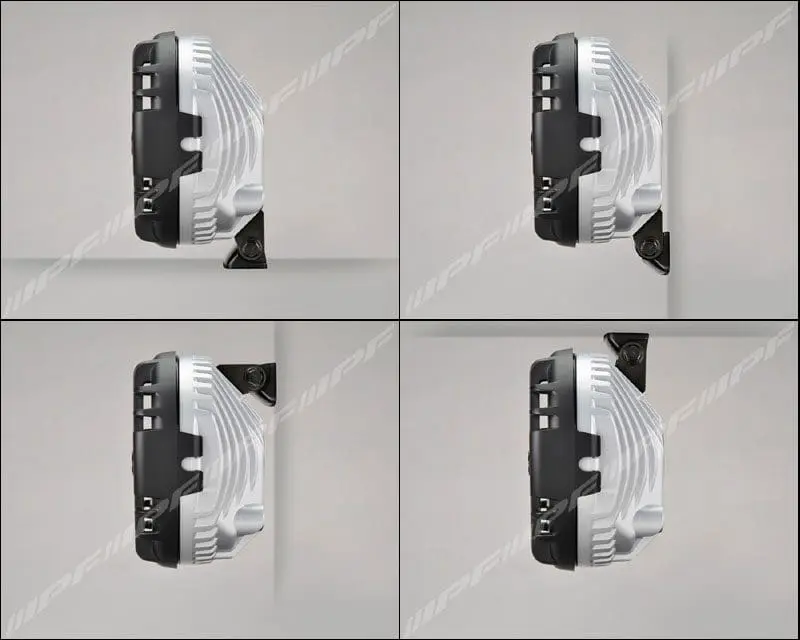

○ Corresponds to various vehicle installation environments, realizing upright, hanging, and rear mounting.
Tightly fixed with multi-directional movable bracket & M10 bolt. Upright, hanging, and rear mounting are realized with a stay that can be changed from top to bottom to support various vehicle mounting environments.

○Completely waterproof (waterproof and dustproof performance: IP68 standard)
Completely waterproof and dustproof (IP68 standard) design, equipped with a breather that prevents water and dust from entering and keeps the air pressure inside and outside the lamp constant.

○ Uses a waterproof connector made by Deutsch, which has excellent waterproof and dustproof properties to prevent water intrusion.

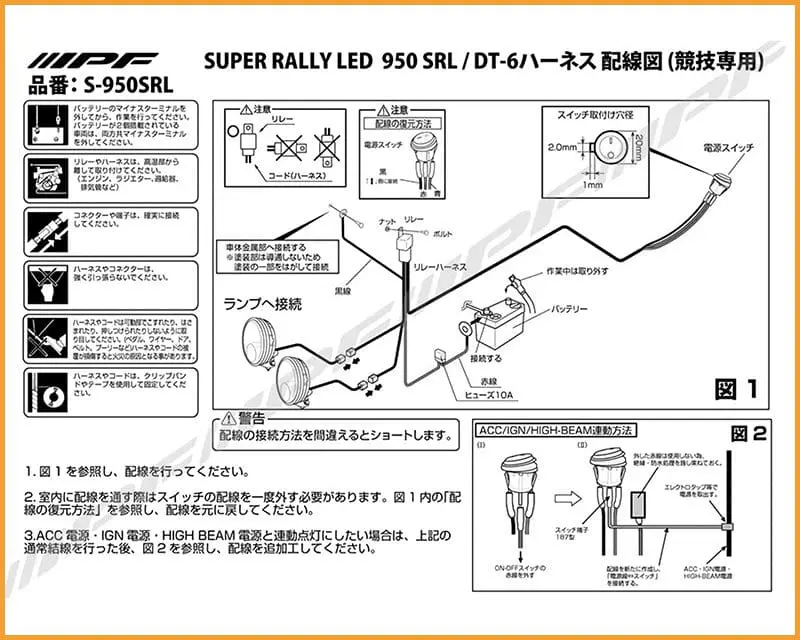

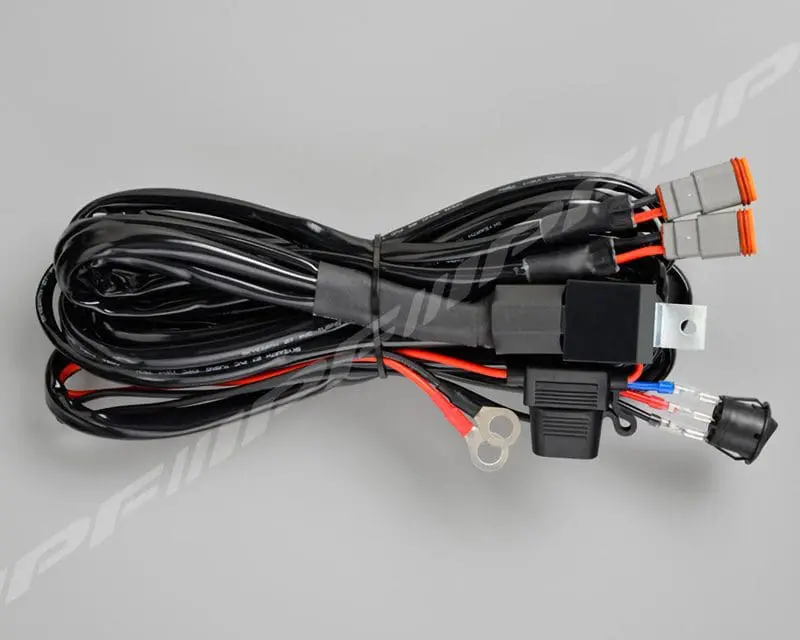

○ 12V/24V shared harness with waterproof switch/harness with relay for 12V vehicles.
*A separate 24V relay is required for use with 24V vehicles.

○SUPER RALLY LED aluminum plate emblem with aluminum plate emblem and stone guard creates a sense of luxury. In addition, it comes with a stone guard to improve impact resistance and styling.

○Aluminum die-cast body + large heat sink, highly transparent, reinforced polycarbonate lens
The lightweight and tough aluminum die-cast body + large heat sink ensure optimal performance even in harsh environments. Adopts a ventilation system that regulates the internal and external air pressure of the lamp while preventing water and dust from entering. High transmittance, hard-coated, reinforced polycarbonate lenses protect against impact and heat for high durability.

○How to use as a work light (Regarding vehicle inspection)
This product is a driving lamp that is used on non-public roads, but when using this product as a “work light”, please follow the installation and usage instructions below. please give me. It becomes “car inspection non-correspondence”.

■ When installed in a car as a work light

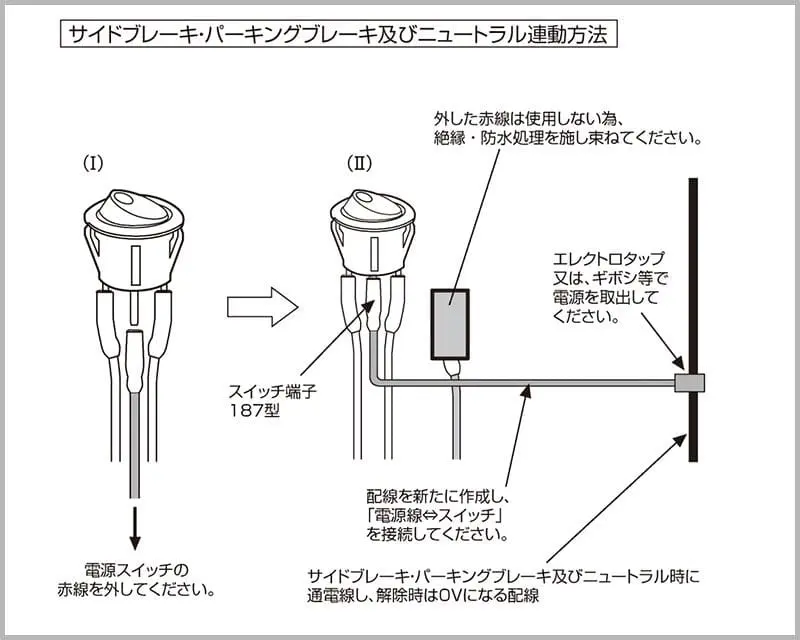

Under Japanese law, it is illegal to drive with the work light turned on. may be regarded as It is recommended to install the “lighting switch” outside the vehicle.
