Description

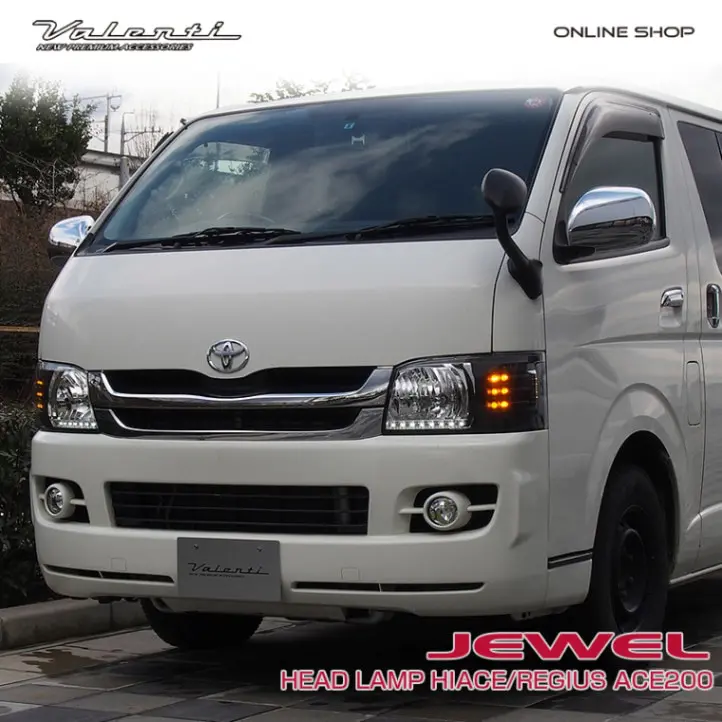

Valenti has released the “Jewel Headlamp ULTRA” for the Toyota 200 Series Hiace, an aftermarket part that is the first in the industry to feature cornering lamp functionality.
The compatible vehicle is the 200 series Hiace series, and the original design headlights feature opening and ending actions.

■Industry first with LED cornering lamp function! This is an aftermarket part for the 200 series Hiace equipped with a cornering lamp function. It uses high-brightness LEDs. The cornering lamp lights up to provide driver support.
The lighting for the cornering lamps (part number: HL200A-CB-1/2/3/4) is linked to the turn signals (indicator-controlled).
(Part number: HL200A-CB-5/6) can be used with the included cornering lamp unit to enable steering response (steering angle control) and back lamp response (backing light control) in addition to turn signal linkage (indicator control). *To use steering angle control and backing light control, installation of the separate included unit and wiring work are required.

■ Equipped with a 3-eye LED projector. The LED low and high beams use a 3-eye projector on one side to create a powerful front face. The inner light is switched on when the high beam is turned on.

■When installing LED sequential turn signals, you can change the turn signal settings to “flowing” or “not flowing” by changing some of the wiring connections.

■LED position and daytime running lamps. LED bars are used for the position and daytime running lamps.
Daytime running lights come on when ignition is turned on. Position lamps become dimmed when position lamp switch is turned on.
*Additional wiring work is required for the daytime running lamp function to operate.

■ Equipped with turn signal position function Equipped with a turn signal position mode that allows the outer part of the turn signal to be lit in the position, allowing you to select the lighting pattern.

■Product color Lens: Clear Inner color: Gloss black

[For vehicles with 1st to 3rd generation genuine halogen headlamps]
Product number: HL200A-CB-1/JAN: 4570178471576

[For vehicles with genuine 3rd generation HID headlamps]
Product number: HL200A-CB-2/JAN: 4570178471569

[For all 4th generation vehicles/5th generation and above vehicles with genuine halogen headlamps]
Product number: HL200A-CB-3 / JAN: 4570178471545

[For all 4th generation vehicles/5th generation and above vehicles with genuine LED headlamps]
Product number: HL200A-CB-4 / JAN: 4570178471552

[For vehicles with genuine halogen headlamps with smart entry from 5th generation onwards]
Product number: HL200A-CB-5/JAN: 4570178471521

[For vehicles with genuine LED headlamps with smart entry from 5th generation onwards]
Product number: HL200A-CB-6 / JAN: 4570178471538

[Compatible models]
●Toyota Hiace/RegiusAce Model: KDH2##/TRH2##/GDH2## Year: August 2004 – Early model – current model *To change the face of your vehicle from the 1st to 3rd generation to the 4th generation, you will need to purchase genuine parts such as a grille, bumper, etc.

■ Standard work time: 3.5 hours

By installing this product, you can prevent the battery from running down due to dark current, especially in vehicles that are rarely driven or stored for long periods of time.

■Prevents battery drain due to dark current By attaching this product to “ULTRA” series headlamps with OEA function and using it in combination, it prevents battery drain and battery drain due to dark current when the engine is stopped (such as when the vehicle is stored).
*Please use part number DSK-01 for the tail lamp “ULTRA” series and door mirror turn signal series with OEA.
■Product Overview After the engine is stopped, after a certain period of time (approximately 20 minutes) has passed, the sleep function is activated, and the continuous power supply is cut off.
When the vehicle is unlocked (answerback operation), the constant power supply is instantly restored and resumed, and the OEA operates.

■Accessories: Main unit, electrotap, connector. Compatible models: General purpose. Rated current: 20A (allowable current 25A).
Product number: DSK-02 JAN: 4570178473419
Specifications: 12V/24V compatible Other: Vehicle inspection compliant/safety standard compliant
