Name: BATTLEZ LIFT UP VFS Ver.B(20) COMPLETE SET For Jimny JB74 Series A734518B
Availability: InStock

BATTLEZ LIFT UP VFS Ver.B(20) COMPLETE SET For Jimny JB74 Series A734518B

Product number: A732518B

This can be shipped via economy air to most parts of Asia, the US, and Europe. However, since this shipping cannot cover the territories, we may request an additional shipping charge after the buyer places the order.

Description

Basic information

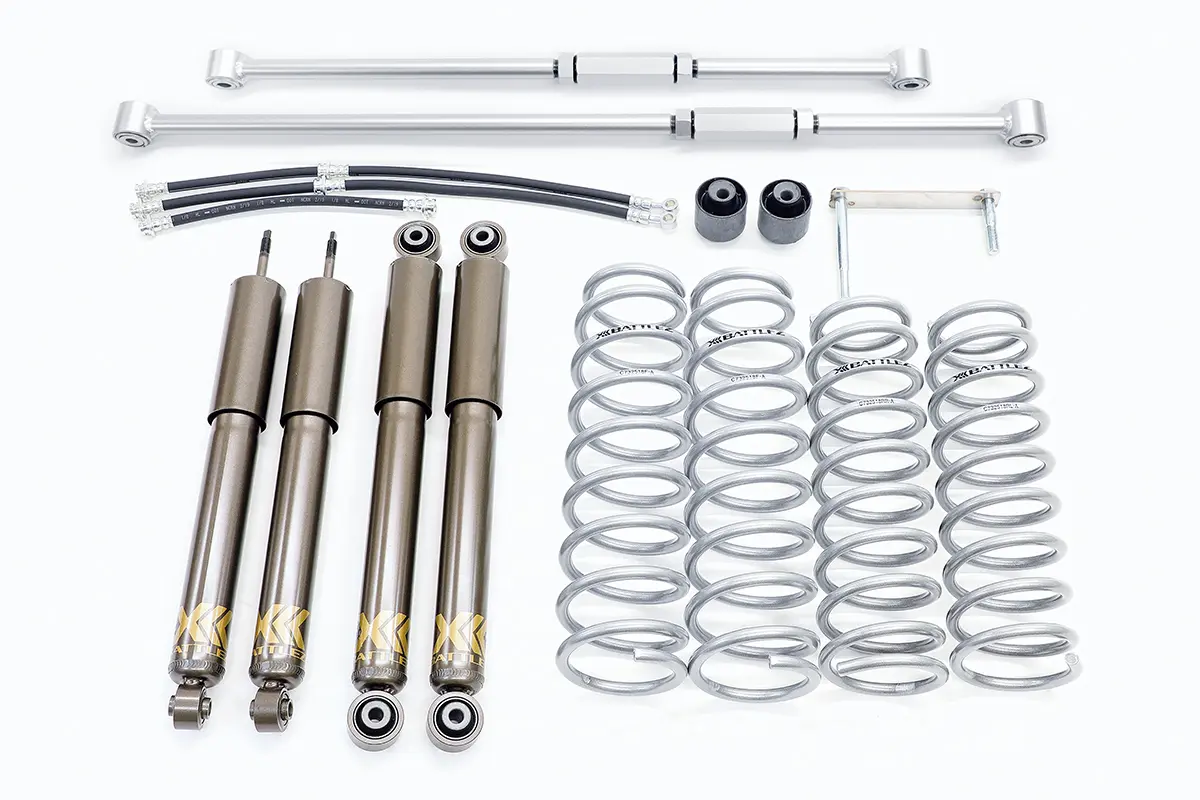

A lift-up set that combines coil springs made with titanium-blended materials with a sag guarantee and high-performance dampers equipped with the Harmoflex® mechanism.

Product contents	Front coil springs, rear coil springs, front dampers, rear dampers
vehicle height	Lift-up : Front: 20-25mm, Rear: 20-25mm
Spring	Spring rate : Front: 19.8N/mm, Rear: 20.5N/mm color: Silver.
shock absorber	Type: Low-pressure gas twin-tube damper, Harmoflex® mechanism. Damping force adjustment: Fixed type. Damping force. Front: Rebound -20%, Compression 31% (0.3m/sec/compared to stock) Rear: Rebound 6%, Compression -5% (0.3m/sec/compared to stock) Stroke: Front: +7mm, Rear: +13mm. Body Diameter : Front: Ø45.0, Rear: Ø45.0 Piston Diameter : Front: Ø30.0, Rear: Ø30.0 Color: Gray metallic
others	Coil diameter: [Front: 11.5Φ] [Rear: 11.0Φ (right), 10.5Φ (left)]
Installation method	Genuine replacement
Reference installation time	2.5-3.0 hours
Notes and supplementary explanations	A sag guarantee is included (coil springs only). Lifting may result in the vehicle no longer meeting the immediate front and side visibility standards (Article 44, Paragraph 5 of the Safety Standards), which may require the addition of a forward visibility confirmation mechanism such as a front-view camera. Safety equipment such as driver assistance systems and collision avoidance systems from each automaker may misidentify or malfunction due to changes in vehicle height, including radar, cameras, and sensors. We assume no responsibility for malfunctions of these systems caused by changes in vehicle height due to the installation of our lift-up (or lowering) suspension, or for accidents resulting from such malfunctions. Please note. Installing our lift-up suspension alone will eliminate interference between the front propeller shaft and cross member.

Packing Size
H:410 × W:370 × D:370 mm
H:290 × W:240 × D:995 mm Product weight (the weight of the product excluding the package) 25.9 Kg
Packing weight (packing weight) 26.8 Kg
