GANADOR Ultimate Power Tune Double Muffler for Landcruiser ZX Diesel
¥229,000Original price was: ¥229,000.¥220,000Current price is: ¥220,000.
Part Number: GDS-160
Please select per-product shipping when placing the order. This can be shipped via economy air shipping to most parts of Asia, the US, and Europe. However, the territories cannot be covered with this shipping, we may request an additional shipping charge after the buyer places the order.
The muffler equipped with “PBS.S (PBS Super)” further emphasizes the characteristics of the 3.5L gasoline engine, and the torque and power that rise from the moment you open the accelerator gives you an unprecedented feeling of acceleration.
Sound
3.3 diesel turbo sound with a pleasant bass sound that wraps around your body.
Design
Available in 4-output/double-output/single-output settings that match the Land Cruiser 300’s body design.
Impression
Improved output from the low to medium speed range, achieving stress-free starting and a sharp sense of acceleration.
Power graph
Compared to the standard muffler, the muffler equipped with GANADOR PBS.S shows significantly increased power. Please enjoy it slowly while referring to the power figures below.
*Torque has not been measured because the rotation speed cannot be determined.
Power data
GANADOR muffler 324.6 ps
Normal muffler 311.0 ps
Compared to the normal one, the power is also significantly increased.
● The PBS.S equipped muffler produced 324.6 ps, +13.6 ps more than the stock muffler.
● As you can see from the graph, the momentum of the power is increasing. Driving on high-speed highways is also very comfortable.
Fuel consumption measurement results improved by 16.0%
● The PBS.S equipped muffler has significantly improved fuel efficiency compared to the standard muffler.
● Under the same conditions, fuel consumption will be reduced and you will be able to drive longer distances than under normal conditions. You can save on gas costs, making it very eco-friendly and economical.
Proximity exhaust noise data
GANADOR muffler 78dB/3,000rpm
Normal muffler 76dB / 3,000 rpm
● The volume data of the PBS.S equipped muffler is 2 dB higher than the normal muffler. Of course, it is a vehicle inspection-compatible product.
● Compared to the stock muffler, the bass is slightly louder, creating a gentle and comfortable sound that envelops the entire vehicle. A sharp, clear deep bass sound that wraps around your entire body. The unique sound of a V6 engine resonates.
Confirmed performance display number
JQR50233043
Engine model
F33At
Vehicle Model
3DA-FJA300W
Car model name
land cruiser 300
Compatible grade etc.
ZX grade
Compatible vehicle model
3DA-FJA300W
Engine model
F33A-FTV (3,345cc diesel turbo)
Compatible year
2021.8～
brand series
Vertex 4WD/SUV (equipped with PBS.S)
Product number
GDS-160
price
¥229,000
Idling volume (dB)
56.0 (Normal: 58.0)
Proximity exhaust volume (dB)
78.0 (Normal: 76.0)
Power (PS)
324.6 (Normal: 311.0)
Torque (kgf・m)
*Torque has not been measured because the rotation speed cannot be determined.
Muffler weight (kg)
16.4 (Normal: 15.3)
Muffler ground clearance (when empty)
Scheduled to be published at a later date.

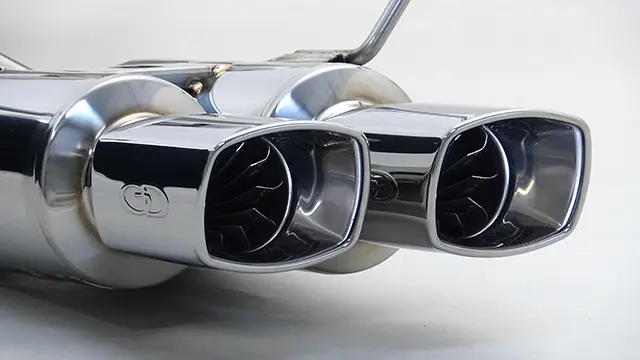

Tail diameter
120X90 square (left double exit)
pipe diameter
80φ-60.5φW
Attached parts
Bumper shade (1 silver) / M10X70 bolt (2), M10 flat washer (2), M10 flange nut (4) / Color 14φX40 (2) / GC04 gasket (1) / Rubber mount for 12φ ( 1 piece) / Clearance gauge (black) / Instruction manual
*The “bumper shade” that covers the notch on the left side of the bumper is an included part. When ordering, please specify the grade (ZX) and color of the cutout part.
For the ZX grade, please choose from the following three options.
“Precious White Pearl (090)”
“Black (202)”
“Unpainted” * Separate painting is required.
* Exterior colors of ZX that are subject to unpainted (surfacer finish)
“Gray Metallic (1G3)”
“Dark Red Mica Metallic (3Q3)”
“Avant Garde Bronze Metallic (4V8)”
Genuine reused product
Genuine taper gasket (1 piece), special bolt (2 pieces), spring (4 pieces), rubber mount (4 pieces)
Notices
*For diesel ZX grade standard bumper.
*It is OK to install a spare tire.
*The “bumper shade” that covers the notch on the left side of the bumper is an included part (color selection).
*Items with various other aero parts are unconfirmed.
*The silencer is a woolless type.
Special note 2
*Please be sure to read the notes at the bottom of this page.
