HPI EVOLVE SIDE TANK OIL COOLER KIT for GR Yaris
4BA-GXPA16 G16E MT 2020/10 ～ W5 (HPOCE-GXPA16)
Please select per-product shipping when placing the order. This can be shipped via economy air shipping to most parts of Asia, the US, and Europe. However, the territories cannot be covered with this shipping, we may request an additional shipping charge after the buyer places the order.
<GR Yaris> GXPA16 EVOLVE SIDE TANK OIL COOLER KIT
● The W5 core, which is the largest HPI size, is boldly laid out in the front grille!
● The running wind is taken in from the grill, the oil is cooled through the core, and the running wind is exhausted to both sides by using the unevenness of the drain hose.
● By adopting the maximum O / C core, the maximum cooling performance is demonstrated against the high calorific value of GR Yaris.
● By combining AN10 Banjo and a thin plug, it can be installed in a small space and with a minimum of processing.
● The oil cooler is installed bolt-on in front of the radiator.
* Partial cutting of radiator side sill, radiator grill (inside), etc. is required. Remove the genuine Styrofoam bumper before use.
[KIT contents] Side tank-type oil cooler core (W5) L620 x H150 x W50 Oil capacity: + Approximately 1.0 to 1.2L, dedicated oil attachment (wax type thermostat built-in 82 ° C fully open valve), dedicated mounting stay, dedicated fitting & Hose set (assembled), AN10 universal banjo, bolt & nut, child parts, etc., instruction manual
[molding vehicle] Model: 4BA-GXPA16 (1st edition), first-year: October 2nd year, engine: G16E, Mission: MT, * Molded on vehicles equipped with corner sensors and radar sensors

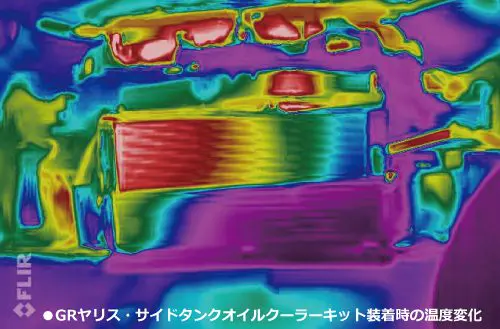

● Color temperature change by thermography
(GR Yaris side tank oil cooler kit) From
On the left side of the image, the oil is heated to a higher temperature (red) than the engine enters the oil cooler core evenly and evenly, and the oil is driven by the running wind from the front. It is cooled in the cooler. It can be seen that the fact that the oil temperature is drawn in a beautiful gradation of yellow → green → blue as it goes to the right side of the image is highly efficient for cooling.
* The color temperature difference between red and blue is about 20 ° C.
Also, the amount of oil is increased by about 1.0 to 1.2L when it is genuine, which suppresses the initial rise in oil temperature.
Can be installed on vehicles equipped with corner sensors/radar sensors (Added on August 24, 2021)
[Compatible model] Toyota GR Yaris
Body model: 4BA-GXPA16 (1st edition)
Engine model: G16E
Mission model: MT
Year : 2020/10 ~ (R2 / 10 ~)
Core size: W5
