Description

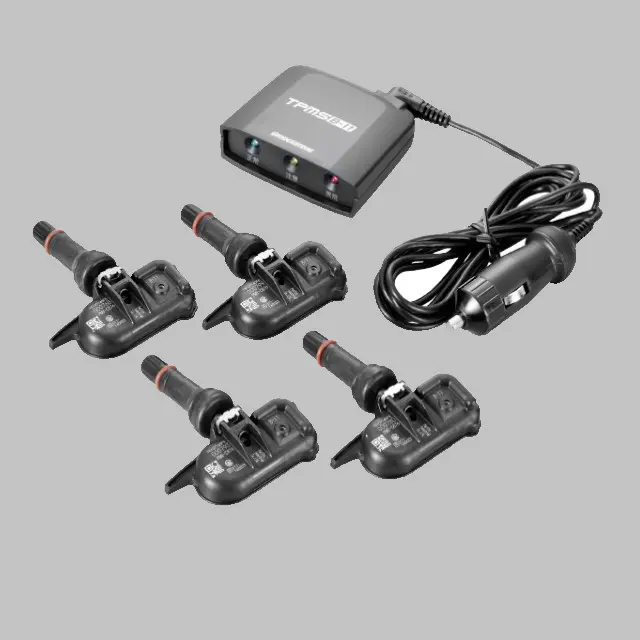

◆ Air pressure sensor that can check tire pressure/temperature in the car
◆TPMS stands for Tire Pressure Monitoring System (tire pressure monitoring system)
◆The tire pressure and temperature are measured with a transmission sensor cap that sends information wirelessly to the reception monitor in the car, A monitor that can check the air pressure and temperature in real-time
◆ Reliable Radio Law-certified product
◆ High pressure (high air pressure), low pressure (low air pressure) alarm function
◆ Air leak detection alarm function
◆Temperature warning display function
◆Battery dead display function
◆USB feeding type. Long cord length of 3m for easy wiring
◆Metal bracket for receiving monitor attachment
◆ Tire air valve cap replacement type

* This product does not come with a USB power supply device.
* Depending on the vehicle type, the transmission sensor may interfere with the wheel cover,
Installation may not be possible.
* In order to comply with the safety standards set by the Ministry of Land, Infrastructure, Transport and Tourism, the transmission sensor
Do not protrude from the fender surface of the vehicle
Please check the mounting space.
*This product is not compatible with large and medium-sized vehicles such as trucks and buses.

Input power supply: USB5V/0.5A
Operating temperature range: 0-40℃
Measurement temperature range: -30 to 80°C (tolerance: ±3°C)
Air Pressure Measurement Range: 0-8.0 Bar (Tolerance: ±0.1Bar), 0-116 Psi (Tolerance: ±1.45Psi)
Body size/weight: 88W×17H×29Dmm/68g
Cord length: about 3m

[Transmission sensor side specifications]
Transmission frequency: 429.5MHz
Transmission distance: 35m *Depends on the vehicle model.
Power supply: CR1632 battery x 4
Operating temperature range: -20 to 40°C
Transmission sensor valve IP rating: IP67
: (Dust protection level: 6 dust does not enter inside: top class)
: (Waterproof level: 7 No harmful effects even if immersed in water at specified pressure and time)
Size/weight per transmitting sensor: 21W×17H×21Dmm/10g
A number of days of continuous use: Approximately 8 months *Varies depending on usage environment. * The attached battery is a monitor battery.
Package size: 100W x 180H x 35Dmm
