Description

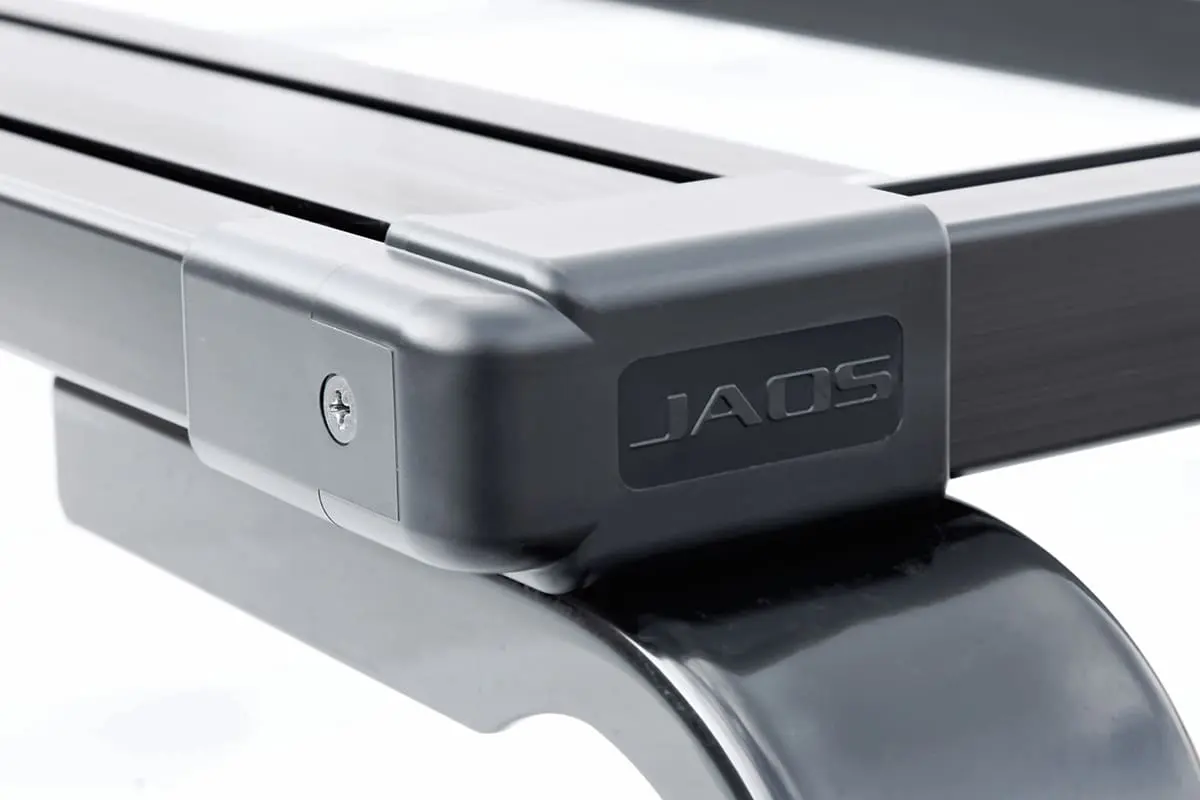

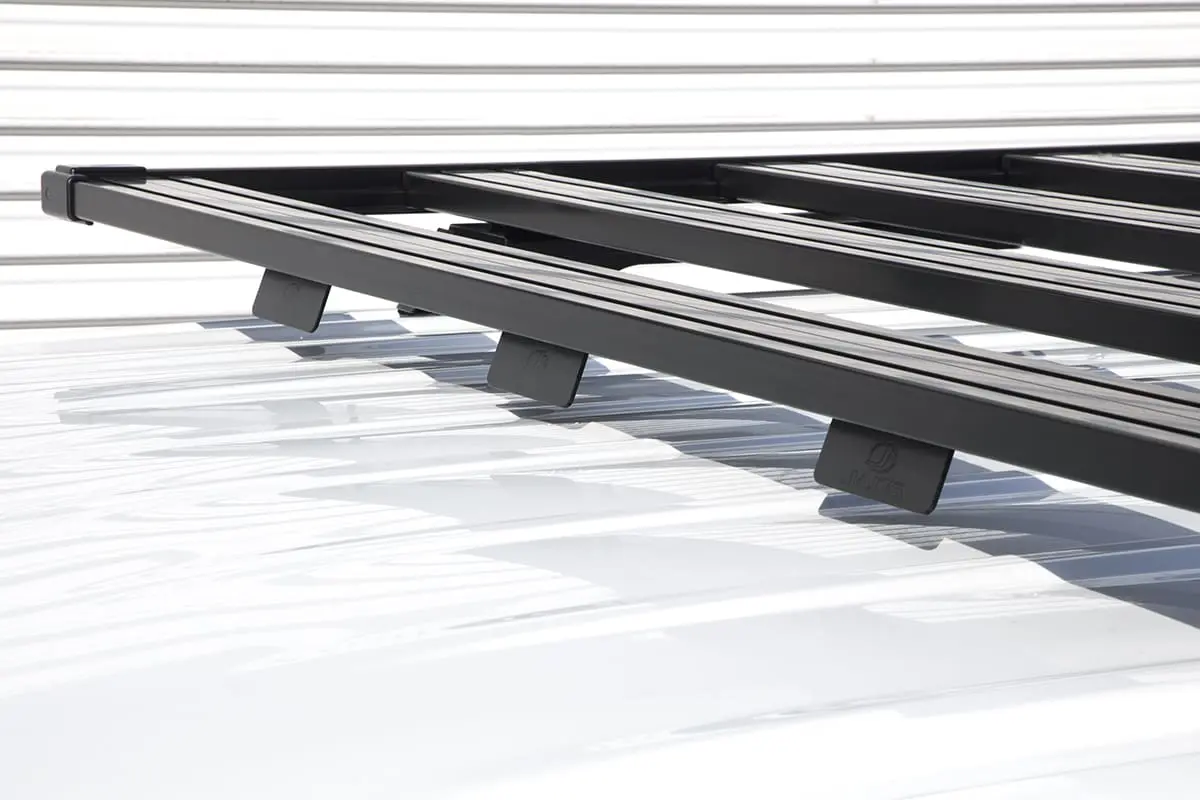

It is a general-purpose type that can be installed on vehicles with rain molding such as Land Cruiser 70 series / 80 series. The main body is made of lightweight and strong extruded aluminum and has toughness specifications that assume hard use while suppressing the increase in vehicle weight. By installing an option in the T slot provided on the floor bar, you can arrange it according to your needs and expand it to your favorite style. It is a high-quality roof rack that is particular “MADE IN JAPAN” with various functionality and reliability.

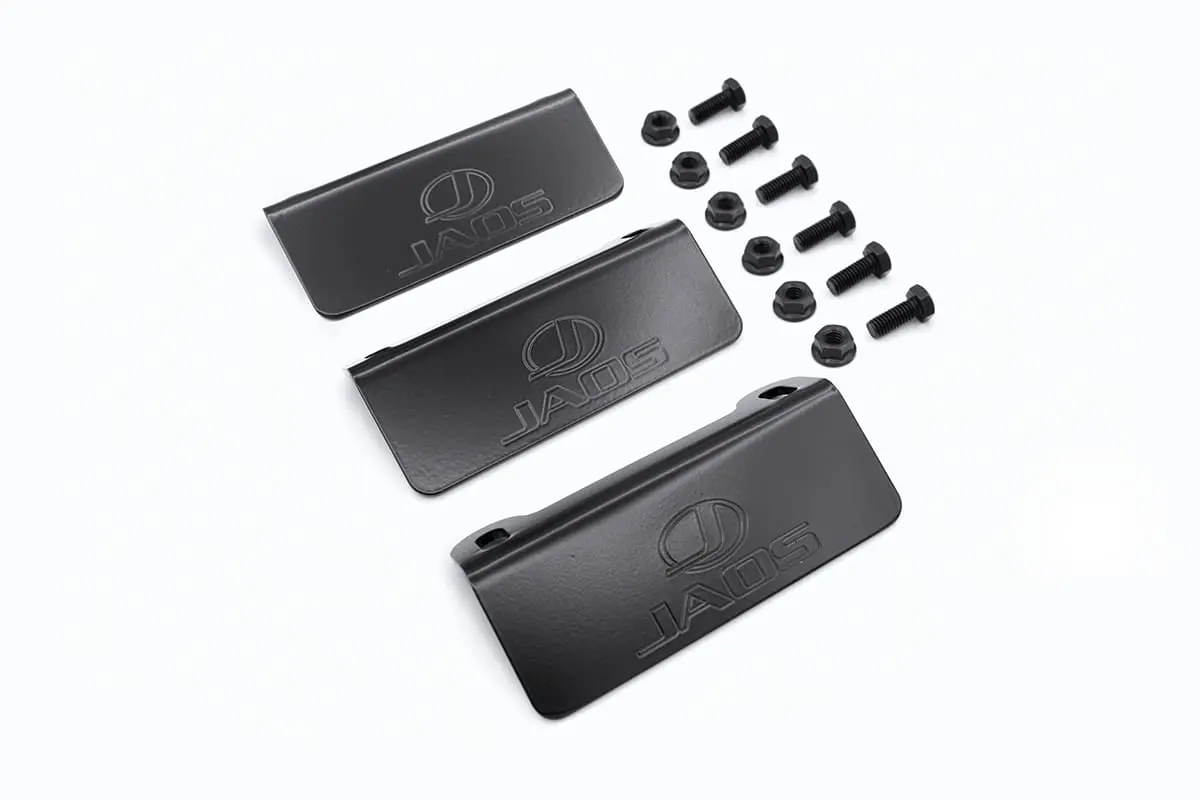

Product details	Body (floor bar x 6), foot set x 6, emblem sticker x 1

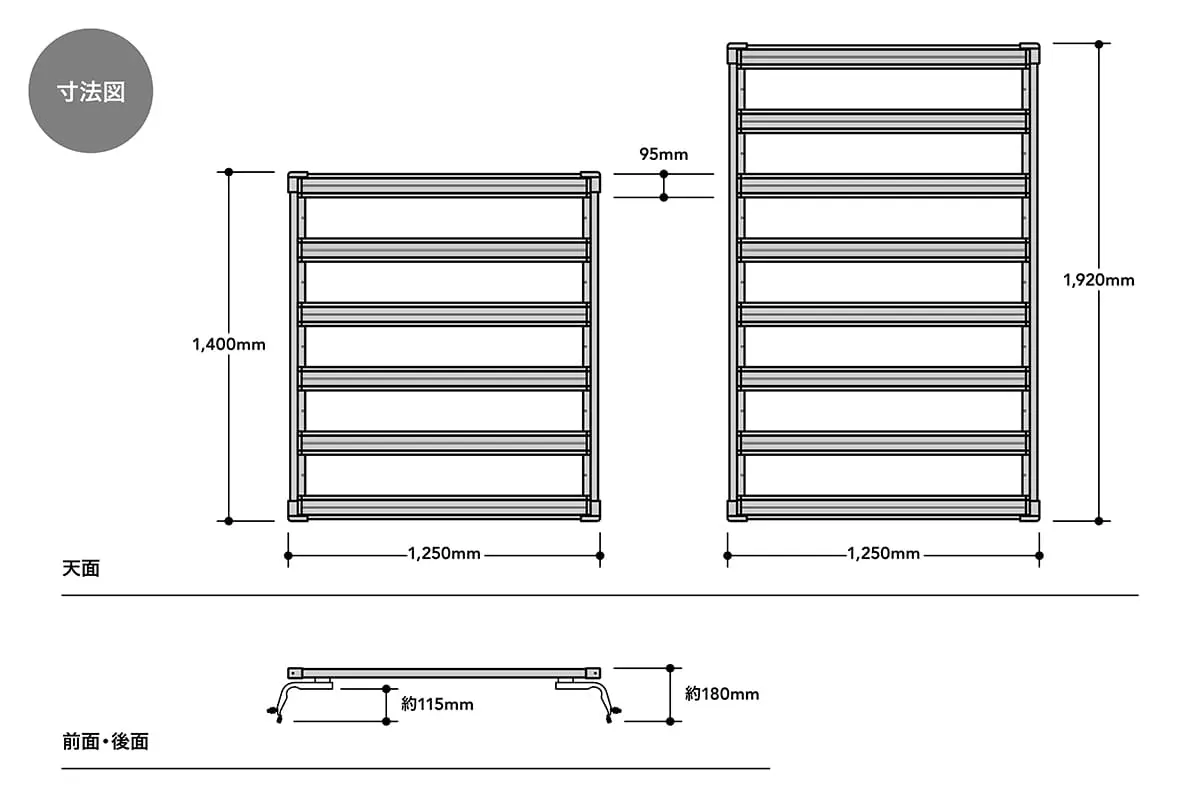

specification	■ Body 　material: Aluminum 　color: Black alumite 　size (main body + foot): W1250mm x L1400mm x H180mm (thickness: corner cap 39mm, aluminum frame 32mm) ■ Emblem sticker 　material: PVC material (high boscal) 　size: 85mm x 18mm

Installation information

Mounting method	Bolt-on
Installation time	2.0-2.5 hours

Precautions / Supplementary explanation

● Vehicles that have been confirmed to be installed
Land Cruiser 70 series, Land Cruiser 80 series

● Precautions for safe use
□ Be sure to perform the installation work by two or more people. Also, when using a stepladder, be careful not to drop it.
□ Do not put your weight on the vehicle as the body panel and roof may be deformed or damaged.
□ Use within the working load range (working load: 50 kg).
□ When loading luggage on a car and driving on public roads, please be careful not to exceed the “size of load” stipulated in “Road Traffic Law Enforcement Ordinance Article 22 Paragraph 3”. ..
□ Disperse the load and be sure to fix it with a rope or belt. Also, do not hang ropes or belts on the base foot.
□ When installing on a sunroof car, make sure that it does not come in contact with this product.
□ Check once a month or every 100km for looseness or damage, and retighten if necessary.
□ Be careful of height, length restrictions, overhead obstacles, etc.
□ You cannot use a car wash machine.
