Description

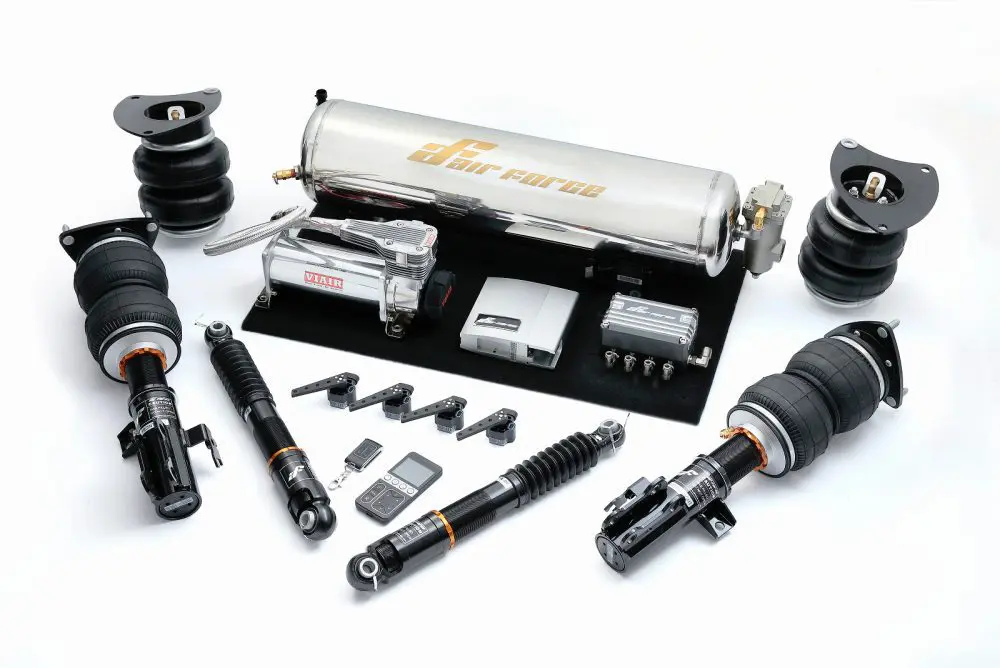

Vehicle height-adjustable Bolt-on air suspension kit

All you have to do is to replace the air-force dampers that match your car model, so you can complete your suspension as if you were replacing dampers.
Ride comfort and stroke can be adjusted with full-tap dampers and damping force adjustment.
More than 450 types of compatible car models are available.

Height Sensor System

Air Force offers two types of kits: the Pressure Sensor System (Super Performance) and the Height Sensor System (GOLD).

The height sensor system detects the height of the vehicle by a height sensor installed on the suspension. The height sensor system detects the inclination of the vehicle height, which varies depending on the weight of the vehicle and keeps the vehicle height in memory at all times. This is the high-end type for those who require more precision.

The ECU (control system) digitizes the air pressure detected by the height sensor. The height is displayed on the wireless remote control.
Moreover, with the memory function that stores four ride heights, you can set the ride height of your choice at the touch of a button. There is also a function that allows the vehicle height to be set to the running height the moment the engine is started. I think you will find that the air suspension has become convenient.

Size overview

Stainless steel tank (5 gallons) 5 ports Withstand voltage … 200PSI Number of ports … 1 / 4PT x 4, 1 / 8PT x 1

The compressor has been renewed from VIAIR ViAir 480C to 485C.
The standard compressor is a VIAIR chrome compressor.
If you prefer black (VIAIR), please let us know at the time of purchase.

Air suspension installation procedure

We will provide an English translation manual

Installation image

Contents

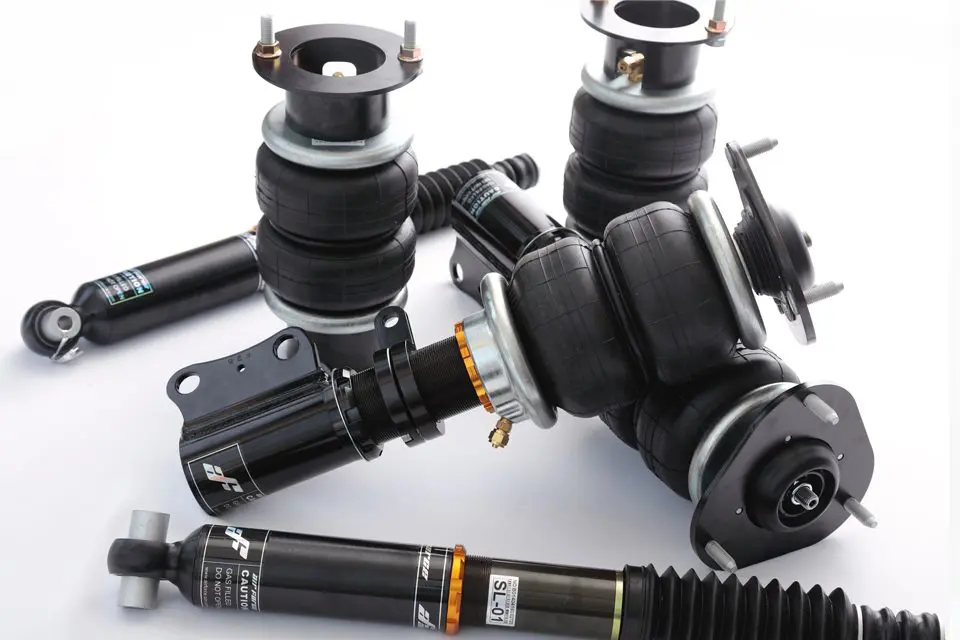

• Harmonic drive integrated airbag or airbag, harmonic drive (for each compatible model)
• Compressor (1 unit)
• Stainless steel tank (5 gallons)
• Installation plate

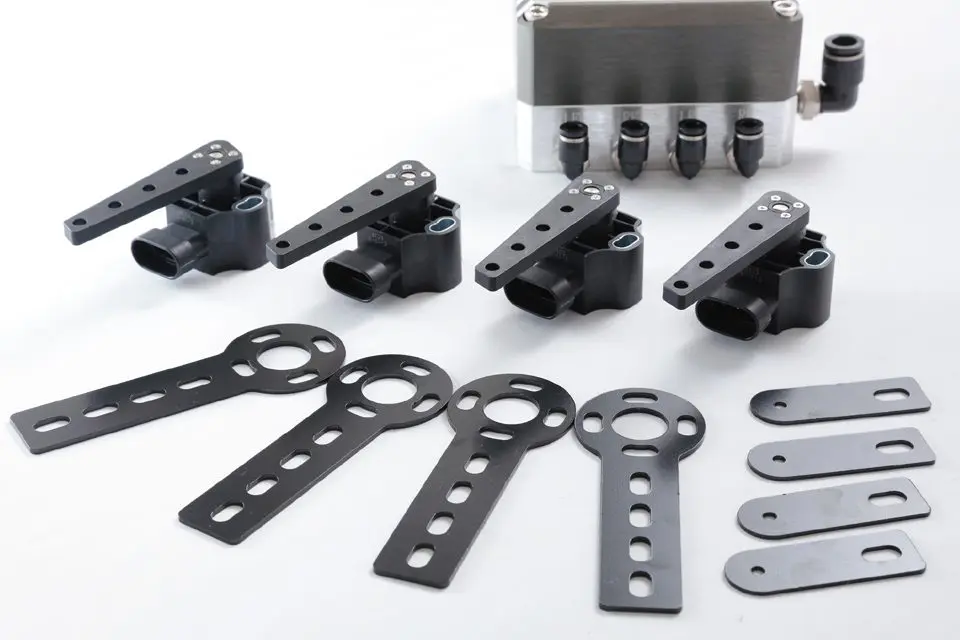

  • Height sensor 4-wheel set (with bracket)
• Manifold with built-in solenoid valve (4 wheels independent)
• ECU
• LED monitor remote control
• Remote control small
• Pressure sensor for tank
• Receiving antenna
• USB charging cable
• Cigar USB conversion plug
• Wiring set
• ECU bracket
• Velcro for fixing the remote control
• operating instructions
